Fleet Camera Install Guide

Please find below install guide for camera system.



To skip ahead within the article select button:

Screenshot 2025-03-28 at 08.58.06.png Screenshot 2025-03-28 at 08.58.15.png Screenshot 2025-03-28 at 08.58.23.png
Screenshot 2025-03-28 at 08.58.32.png Screenshot 2025-03-28 at 08.58.44.png Screenshot 2025-03-28 at 09.01.11.png



Route the Cable

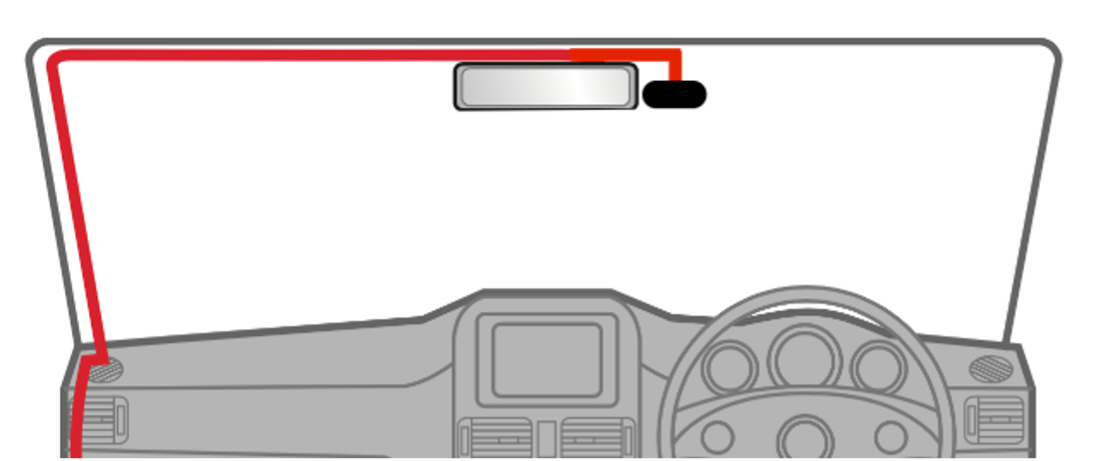

• Route the main cable inside the vehicle, leaving the main connector exposed at where the fleet cam is to be installed on the windshield and the other end going toward the vehicle's power source
Picture 1.png

Device Power: Type-II Cable Kit

  • Use a multimeter to locate a fuse that supplies power even when the vehicle is turned off (such as the emergency hazard lights and interior/door lights) and connect the yellow wire (B+) to the fuse.
  • Use the multimeter to locate a fuse that does not supply power when the vehicle is turned off (such as the indicator lights) and connect the red wire (ACC) to the fuse.
  • The black wire (GND) must be connected to the vehicle's ground point. This product may not work properly if it is not grounded.
Picture 2.png

Dry Fit

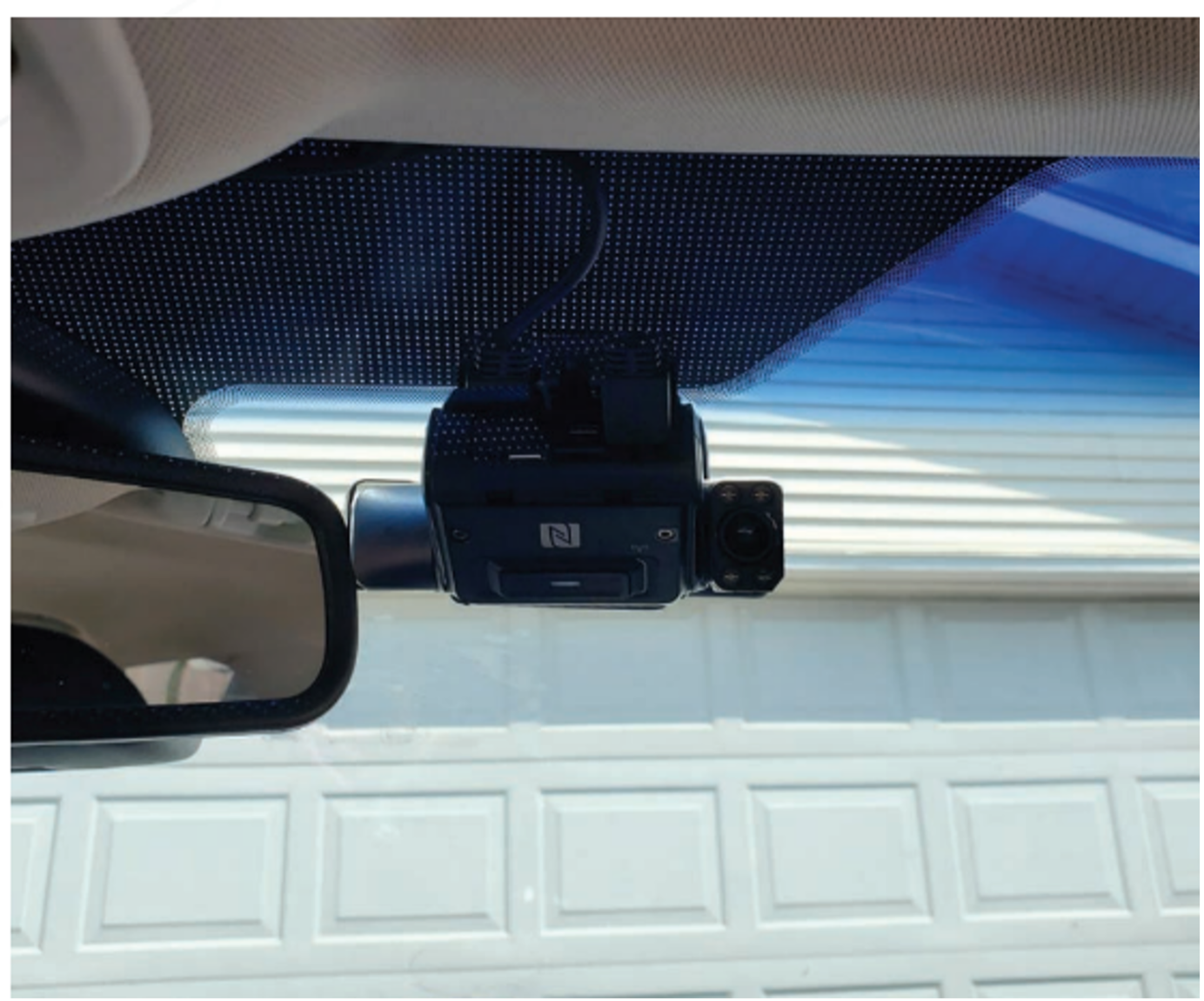

Determine placement of camera on the front windshield. (Dry fit only. It’s important to run cabling to power source first.)

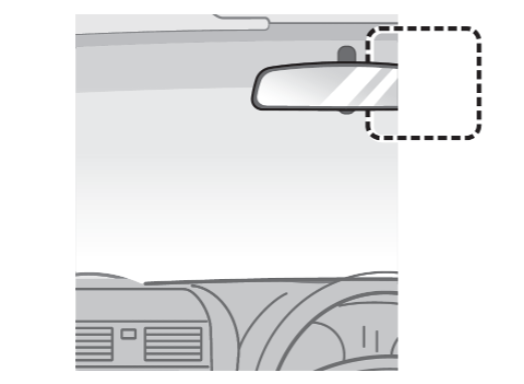

  • High on the windshield next to the rearview mirror area right of center divider
  • Avoid any overhanging exterior sun visor or other materials on glass including rock chips or cracks.
dry fit.png

Affix the Camera

  • Clean the windshield with alcohol wipe prior to mounting the fleet cam. Make sure that the windshield surface is dry and free of condensation.

  • Peel the film off the back of the mounting plate and affix the plate securely onto the windshield. Press on the plate firmly for approximately 30 seconds to ensure it is mounted securely.

  • Wait at least one hour (a wait period of 24 hours is recommended) before attaching the fleet cam to the mounting plate in order for the adhesive to form a strong bond between surfaces.

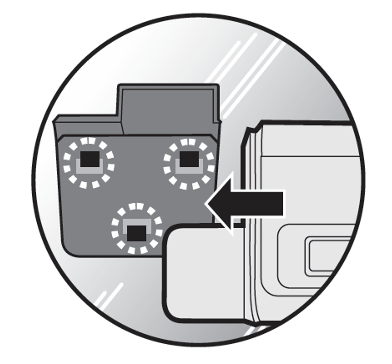

  • Attach the fleet cam to the mounting plate by matching the positions of the mounting holes on the back of the camera with the hooks on the rear plate. Slide the fleet cam sideways until it clicks in place.

Screenshot 2025-03-28 at 08.28.36.png

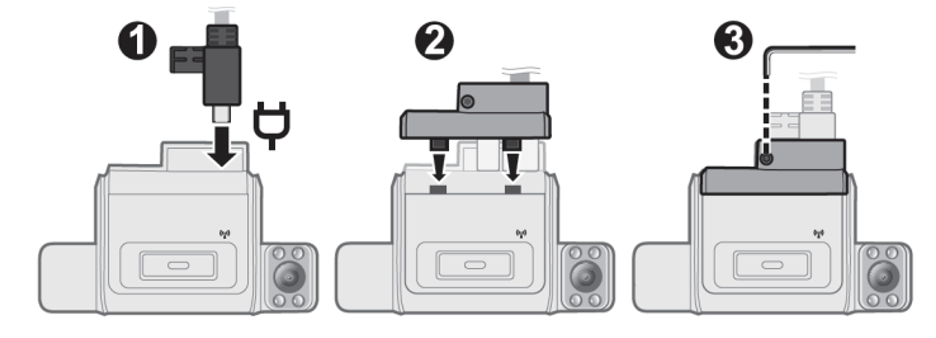

  • Connect the main connector to the fleet cam. Attach the tamper proof cover to the fleet cam and tighten the screw with the hex key.
Screenshot 2025-03-28 at 08.29.16.png

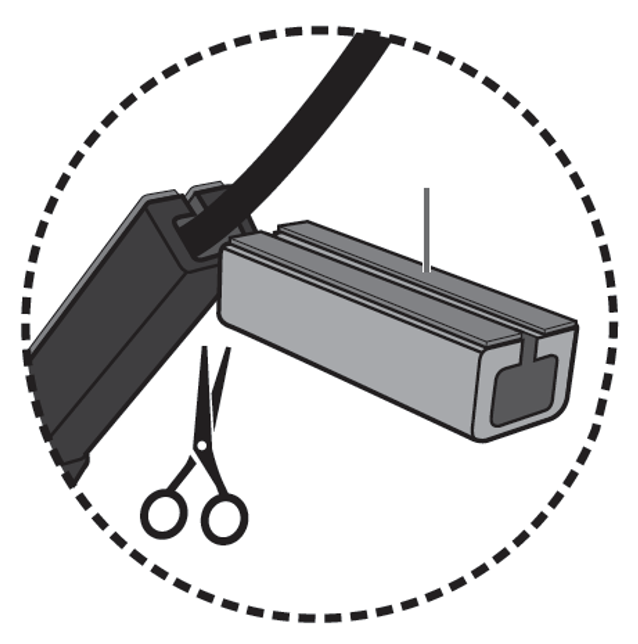

  • Cover exposed cable coming out the fleet cam with the cable guide if required. (Cable guide available as an optional Accessory). Cable guide can be trimmed to desired length with a pair of scissors. Peel the 3M tape off the back of the cable guide to adhere it to the windshield.

Screenshot 2025-03-28 at 08.29.48.png

Install and Launch Vision Agent App

The adjustment of the device installation position needs to be done through the VisionAgent App so you can see and adjust the current lens position.

AIl must be calibrated, this step is necessary for the first installation. Please contact The Fleet Office if you do not already have your log in details for the Vision Link App. Call 1300 100 248



1. Power on the Fleet cam.



2. Install the VisionAgent App to your iOS or Android phone. Launch the mobile app and log in with your account credentials.

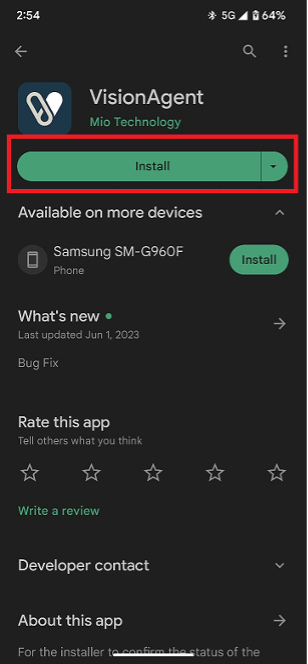

2.1. For iOS and Android App Stores, Search keyword in App Store: “visionagent”. Select the App for installation.

VisionA App.png

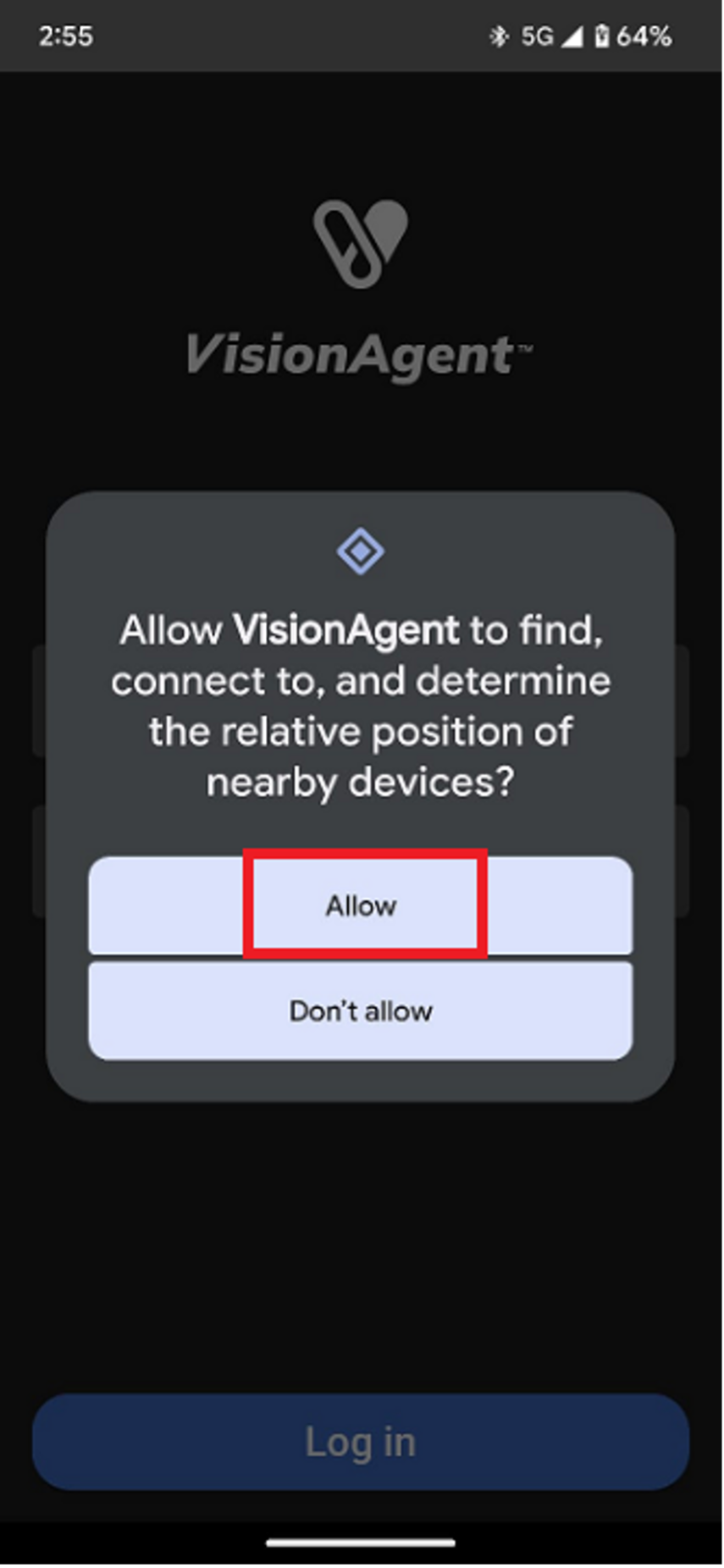

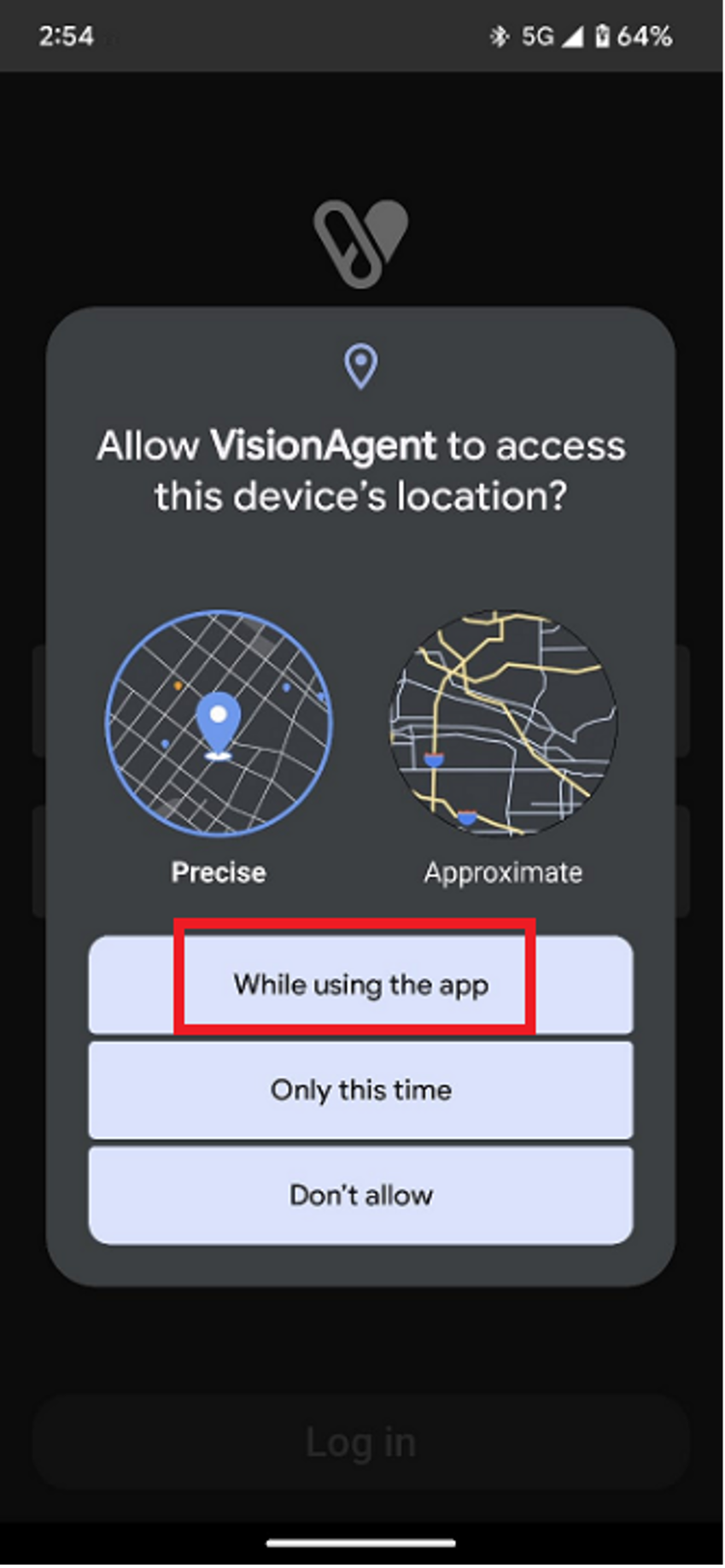

3. Open the VisionAgent App. Allow Location and Bluetooth
VA App.png   AV Al.png

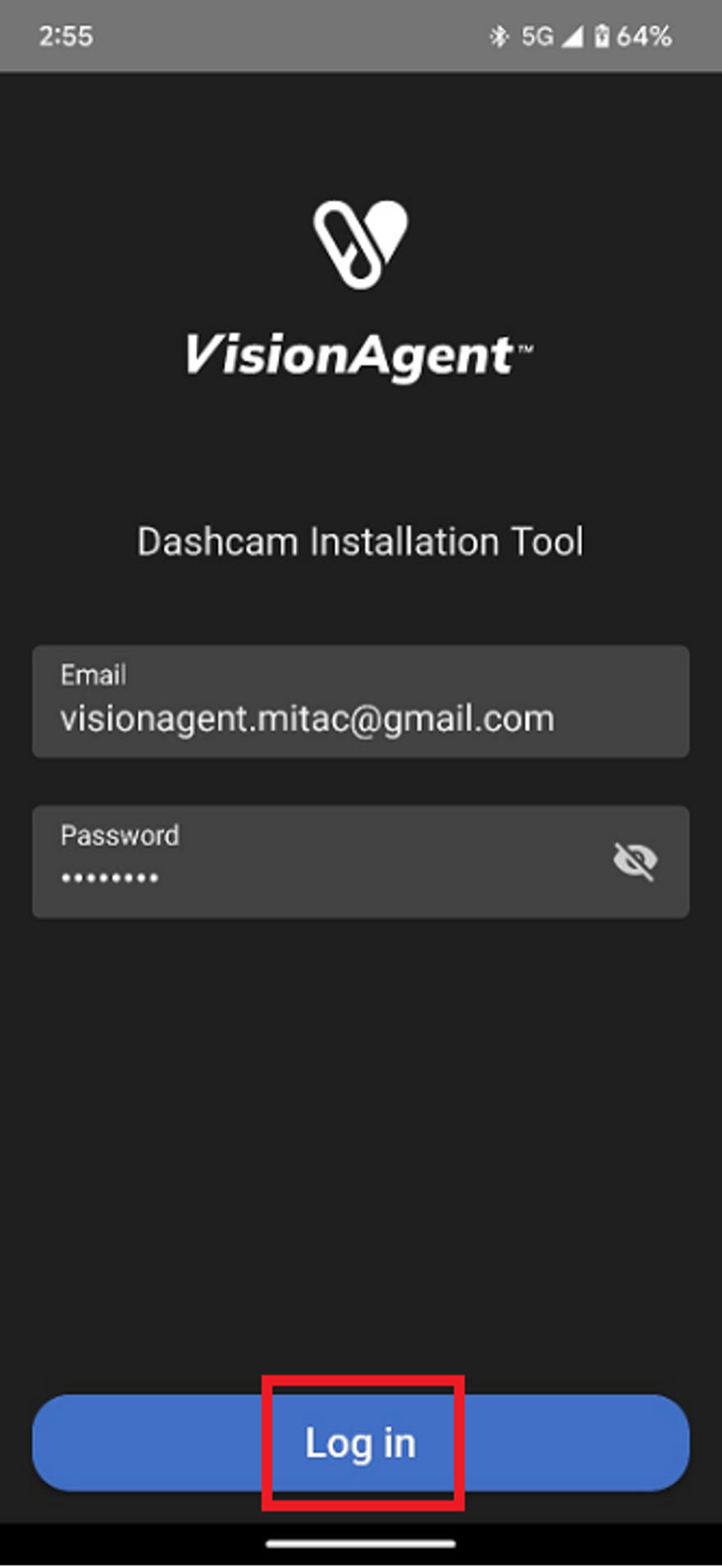

4. Enter the account/password (Supplied to Manager). Select Log-In.

Select 'Fleet'

Choose your company name

Log In.png

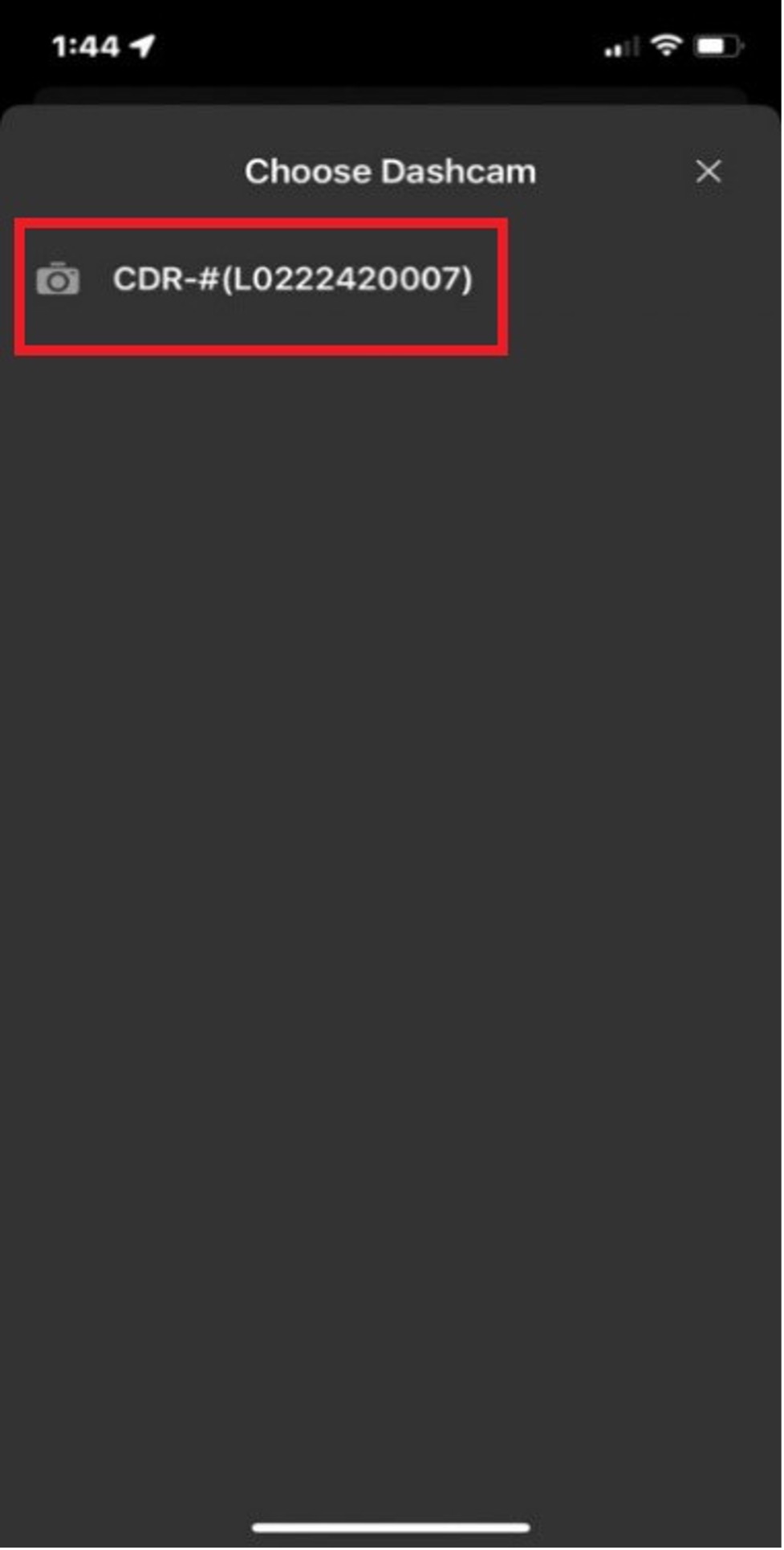

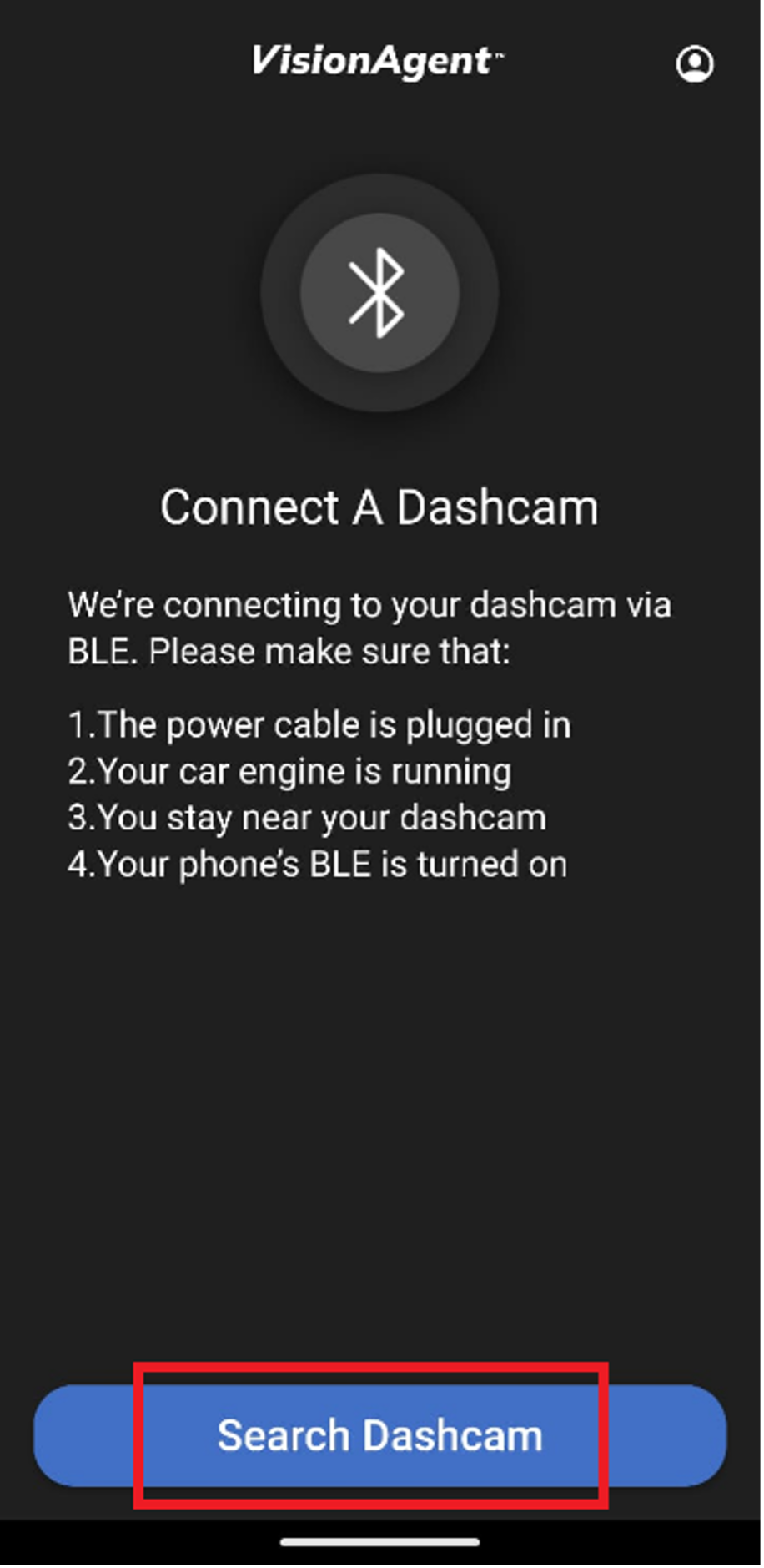

5.Select Search Dashcam

When device has completed 'Checks' it will display on the list.

Connect DC.png  Choose DC.jpg

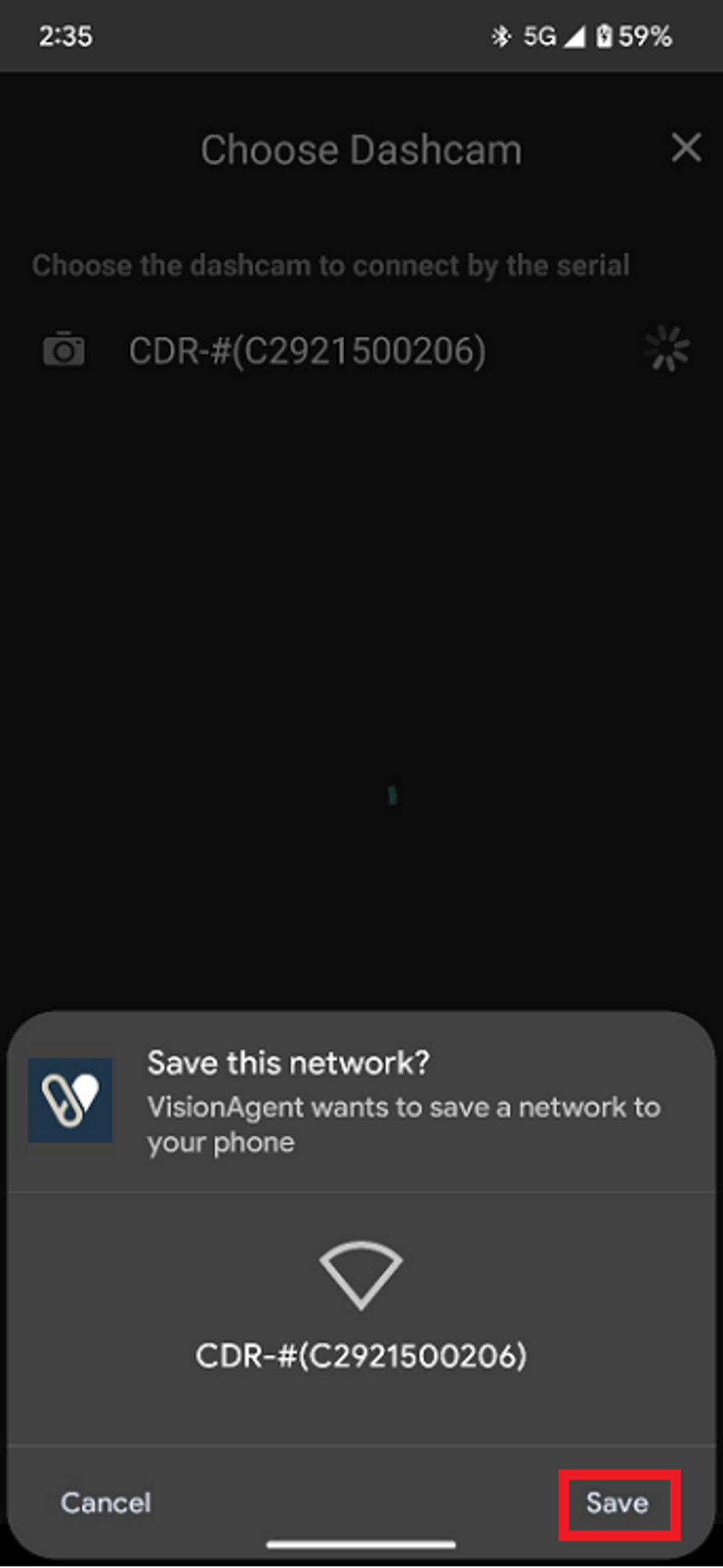

6. Select ‘Save’ and ‘Yes’ if prompted to connect to device WIFI.
cHOOCE .png     iNTER.png

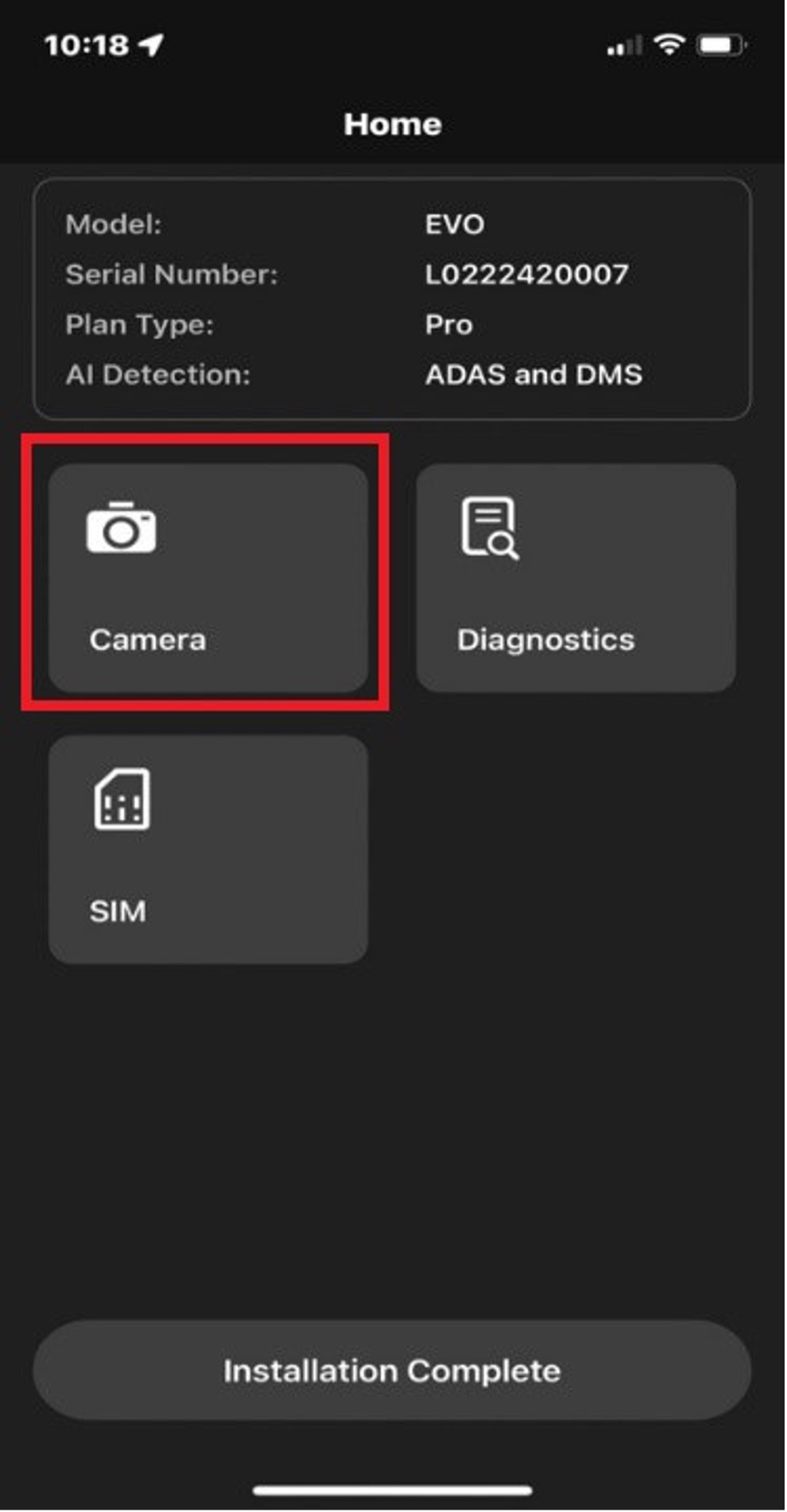

7. On Home screen, select Camera to enter the setting screen. Then, select the Outward camera and follow the installation guide.
caMER.jpg   vIEW.png

When adjusting the outward camera’s viewing angle, make sure the vehicle is parked on level ground and the camera’s view is parallel to the ground.  The ground to sky ratio should be close to a 50/50 split. The area enclosed by the rectangle is processed by the ADAS engines.

Please ensure this region has an unobstructed view of the road.

8. Select the Inward camera, then click to set Driver Location. Select “Right” for RHD, and “A” for camera location. Select DONE.
LOC..png   LOC 2.png
For the Driver Monitoring System (DMS) to function correctly, make sure there is a clear view of the driver being captured by the driver facing camera. For K265, select the “4 TVI camera”, click the box to set the TVI camera and other cameras

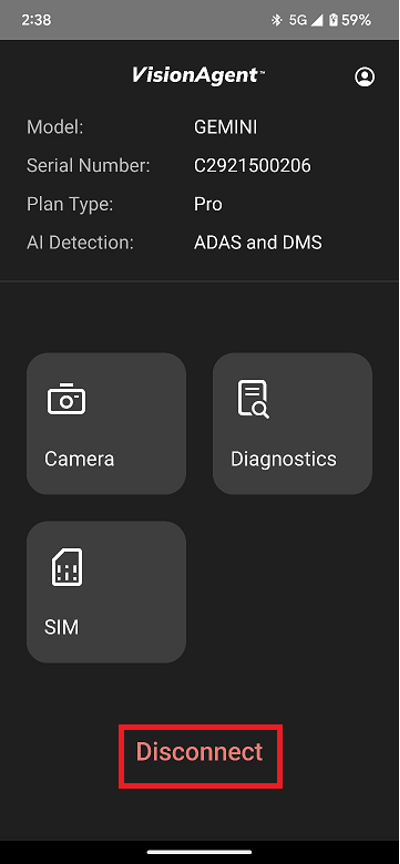

9. Once Cameras adjustments are completed. Go to Home page and select “Disconnect”.  Camera adjustment completed.

Adjust Camera Angle

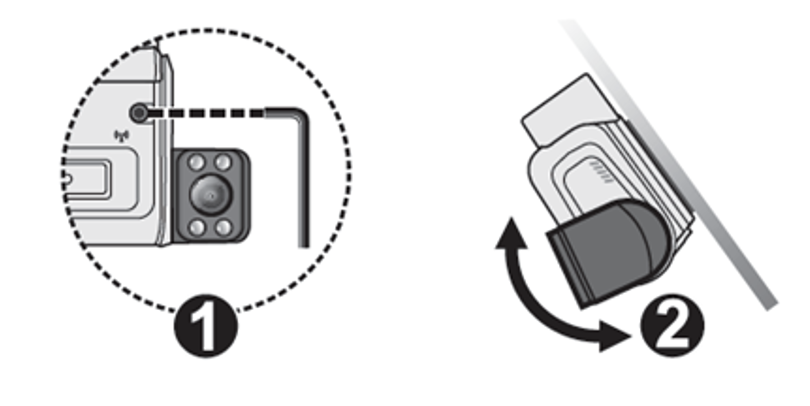

Loosen the camera locking screw(s) and adjust each camera's viewing angle using the corresponding live view displayed by the App, then tighten the locking screw(s) to lock each camera's position once the angle is set.
Screenshot 2025-03-28 at 08.50.22.png
  • Camera should be mounted as high on the windscreen as possible.

  • Camera should be mounted off-centre towards the driver – closer is better.

  • Camera position should not obstruct driver’s direct line of sight to the road or traffic signs, and should comply with local regulations.

  • DMS (Driver Monitoring) functionality is severely compromised if the camera is mounted on the passenger side.

  • Camera wire should be routed around the windshield and should not obstruct the view of the driver.

Before using the fleet cam to record videos, peel off the protective film covering the camera lens. The fleet cam will automatically turn on once the vehicle engine is started and the system will automatically begin continuous loop recording after a few seconds.



During continuous loop recording, if a sudden event (such as driving over a road bump, vehicle collision, high-speed driving, or making a sharp turn) has been detected, the G-sensor will prompt the fleet cam to record the event. You can also press the emergency recording button to record a video manually while continuous loop recording is in progress.



Any questions please do not hesitate to contact our Hardware team on

1300 110 248 - Select Opt 1
