FleetIntelligence - Utilisation / Efficiency

The Utilisation/Efficiency will display your assets idle time vs work time. The system will calculate each assets utilisation & efficiency. This will enable you to identify issues in the way your assets are operated.

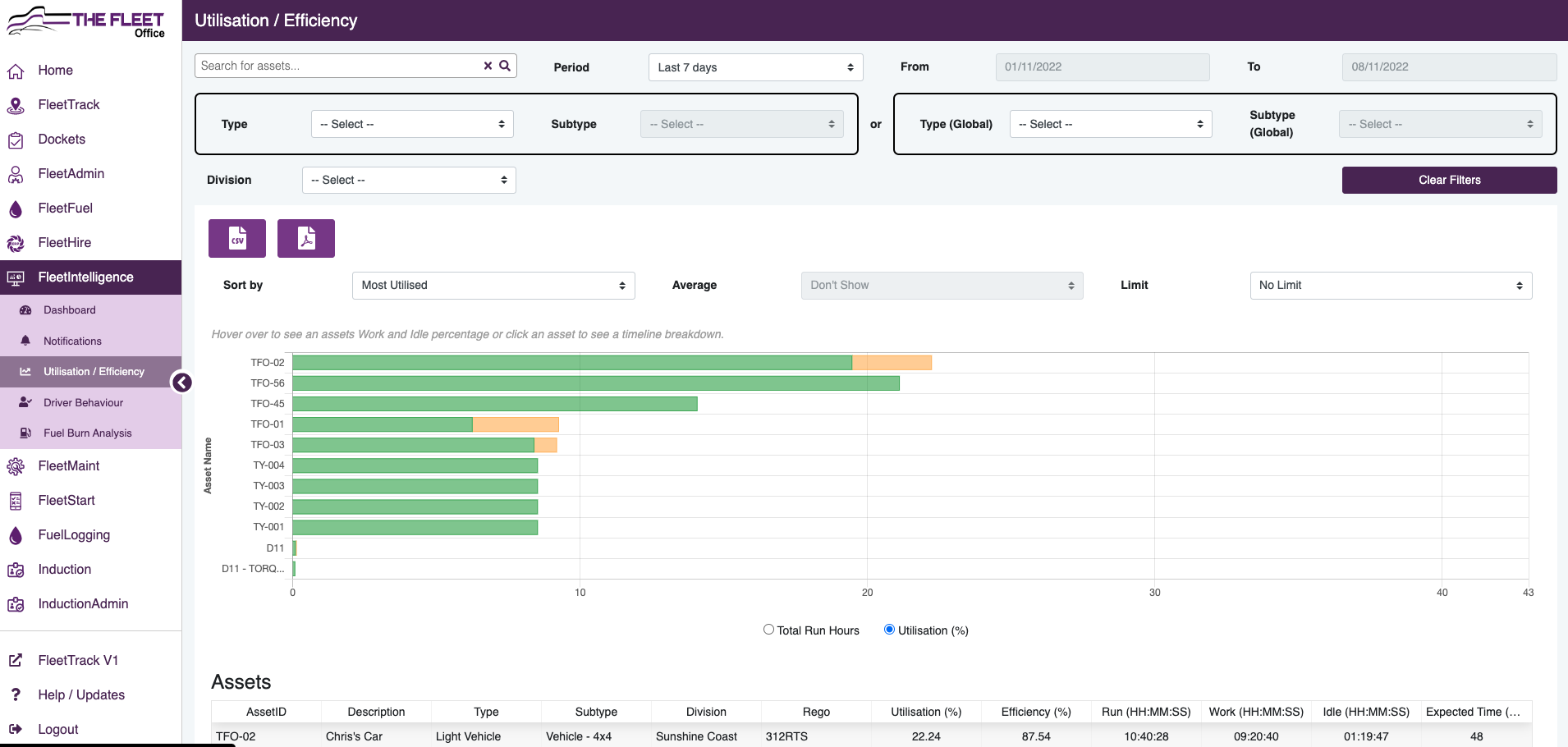

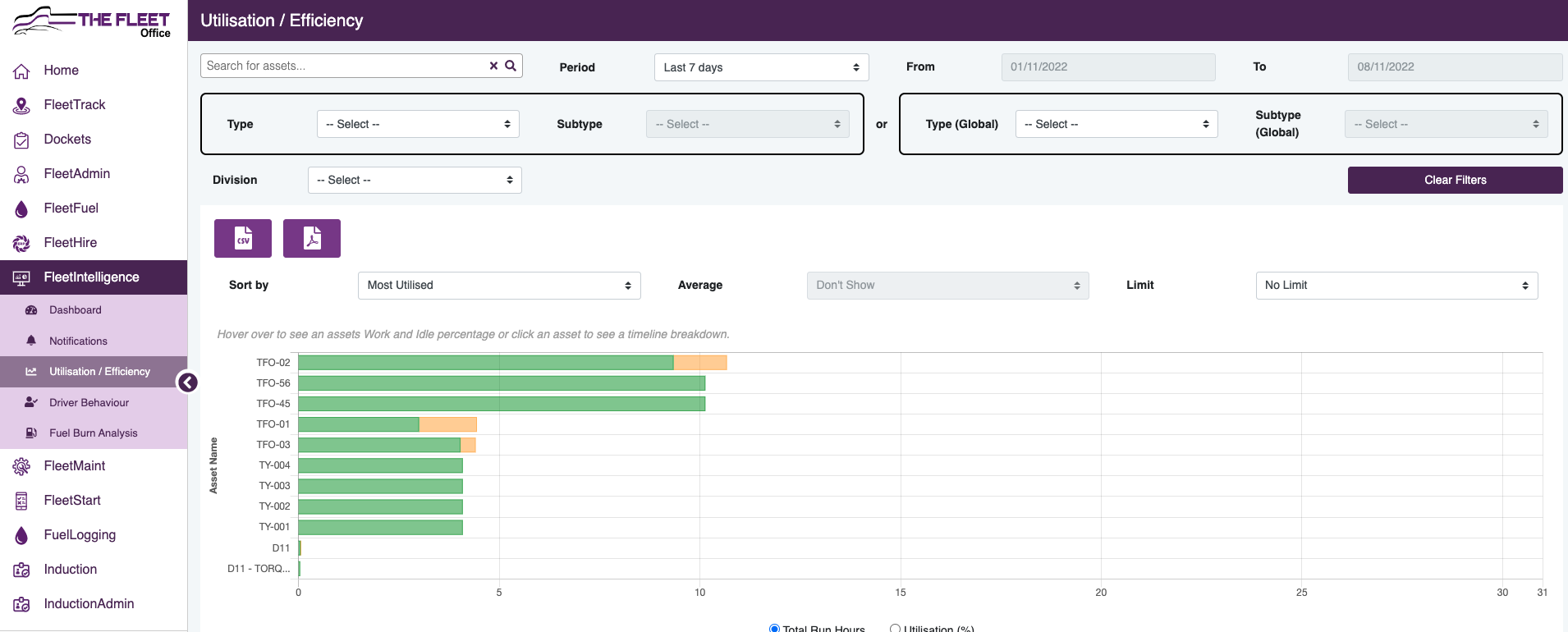

Utilisation / Efficiency

Work time	Is displayed as the green sections on the graph. This is the actual working time for the asset
Idle time	Is displayed as the orange sections on the graph. This is the idling times for the asset. No movement but ignition on.
Run time	Is the total work time + idle time
Utilisation	Is calculated by the total run time divided by expected run time. Expected run time is set in Asset Details in FleetAdmin.
Efficiency	Is calculated by taking the work time and dividing it by the total run time. Then multiplied by 100 to get a percentage.

Filter Assets

Apply filters to reduce the amount of data displayed on this page. Search for an individual asset, Type or Subtype or Division.

Use the predefined time periods or enter a specified date range.

The search results can be exported in CSV or PDF reports.  Simply click on the relevant button.

Asset Display

Hover over the graph to see the breakdown of each Asset.

Click on the bar graph of an Asset, a new page will open that shows day by day detail for the filtered period of time.

All Assets based on the filters are listed at the bottom of the page with idle time, work time, utilisation and efficiency break downs.



Work Time vs Idle Time - Information

Within your utilisation report, it displays work time vs idle time. Allowing you to compare work efficiency ratings for each asset.

Work hours are measured when:

- The asset is moving at 10km per hour or more

- The asset moves 10 + Meters

- Each time the asset registers physical movement through its 3 way accelerometer, we increment an accumulator on the device. If the accumulator has increased by 2 or more between reports (every 2 minutes) we assume that this period has work, rather tham idle and will be recorded as such.

FAQ'S

- How often does it check in?

• Most devices report every 2 minutes, so this is the period which defines as work or idle.

- What if the tracker is moving within the rough terrains of site or shakes within idle of machine?

• As long as the tracker is fitted sturdily, it will accurately pick up accurate movements between idle and work times.

- Can Work times also be calculated from other parameters such as safety levers?

• Additional inputs can be wired in to ensure assets that may work within the above parameters can still register as work time.
